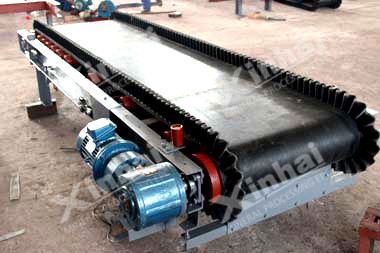

Belt Feeder

Advantages

It has two methods to adjust the production capacity: adjusting the rotating speed of the AC motor； adjusting the depth of the adjusting gate

• Low power consumption, convenient operation

• convenient installation, large conveying capacity

• Low noise

Work Principle

The hopper feeds minerals on the belt. With the AC motor revolving, belt slowly moves toward and carries minerals to next production process to achieve continuous feeding.

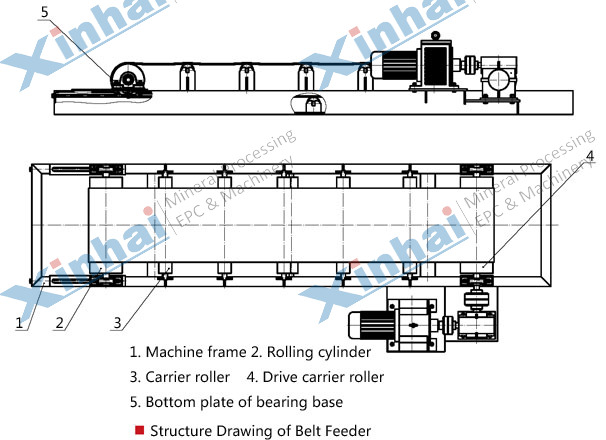

Product Structure

Belt feeder is mainly composed of machine frame, conveying belt, belt roller, tensioning device, and transmission device etc. The fuselage connected by the high quality steel plates. Frame is provided with belt roller, support roller, etc..It has two ways to drive by deceleration motor or electric drum.

Product Application

Belt feeder is widely used in metallurgy, mineral processing, building materials, coal, hydropower and other departments for transporting 0.5~2.5t bulk density materials. According to the technological requirements, it can be used for a single delivery, and can also company with other equipment to form a horizontal or inclined conveying system to meet the needs of different production line.

Technical Parameters

Model	Belt Width (mm)	Center Distance of Head and Tail Wheel or Drum Wheel (mm)	Diameter of Head and Tail Wheel (mm)	Feed Capacity (t/h)	Feed Size (mm)	Motor Model	Motor Power (kW)	Weight (kg)
500X1000	500	1000	219	10~100	0~50	YCT112- 4B	0.75	266
500X1300		1300		10~100	0~50	YCT160 -4A	2.2	345
500X1500		1500		10~100	0~50	Y2.2-1.0-50-32	2.2	767
500X2000		2000		10~100	0~50	Y2.2-1.0-50-32	2.2	609.4
500X2800		2800		10~100	0~50	YCT160- 4A	2.2	670
500 X3000		3000		10~100	0~50	YCT160 -4A	2.2	697
500 X4000		4000		10~100	0~50	YCT160- 4A	2.2	736
650X1500	650	1500		10~100	0~50	YCT160- 4A	2.2	610
650X2600	650	2600		10~100	0~50	YCT160- 4A	2.2	636
650X4000	650	4000		10~100	0~50	YCT160- 4A	2.2	893
800 X2000	800	2000		15~150	0~80	YCT160- 4A	2.2	721
800 X3000	800	3000		15~150	0~80	YCT200- 4B	7.5	857.3
800 X4000	800	4000		15~150	0~80	YCT200- 4B	7.5	1012
800X4500	800	4500	400	15~150	0~80	YCT160- 4A	2.2	1200
1000X2000	1000	2000		200~450	0~80	YCT160- 4B	3	1549
1000X2500		2500		200~450	0 ~100	YCT160- 4B	3	2105
1000 X6000		6000		200~450	0 ~100	YCT225- 4A	11	5214
