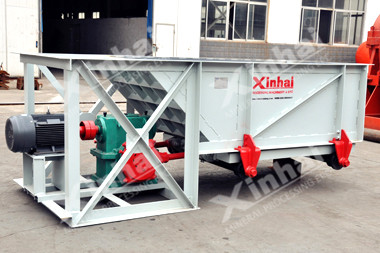

Chute Feeder

Advantages

• Simple structure, even feeding, good continues performance

• Change and control flow and feeding volume at any time

• Stable transmission, high efficiency

• Compact structure, reasonable design

• Excellent quality, wide application

3D Exploded Video

Every single part and working principles of Chute Feeder are showed in Xinhai 3D video, which is really convenient for you to see the structure and working principles of those large equipment.

Work Principle

The machine is usually installed underneath the discharging opening of ore bin. Minerals fall on the bushing. The bushing is located at the chute bottom, configured on idler wheel and via eccentric device connected with reducer which is linked to electric motor by coupler. When it works, electric motor drives reducer via coupler; eccentric disk and drain cap which is situated between chute frame bottom and roller begin to do reciprocal and linear motion so as to uniformly feed minerals.

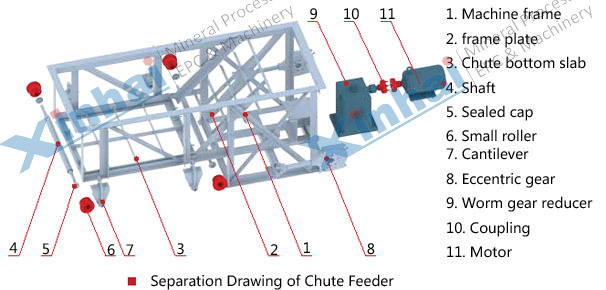

Product Structure

Product Application

The chute feeder is used to convey mineral lump from storage silo to equipment in industries like smelting, mining, chemical, building material, concentrating and coal, etc.

Technical Parameters

Model	Outlet Dimension (W X H) (mm)	Max. Feed Size (mm)	Feed Capacity (t/h)	Motor Model	Motor Power (kW)	Weight (kg)
CG300X300	300X300	50	10~20	Y90L- 4	1. 5	265
CG400X400	400 X400	100	10~30	YCT160-4A	2. 2	640
CG600X500	600 X500	200	10~50	Y112M- 4	4	1045
CG700X500	700 X500	200	10~60			1100
CG980X1240	1240X980	350	36~90	Y160M- 6	7. 5	1710
