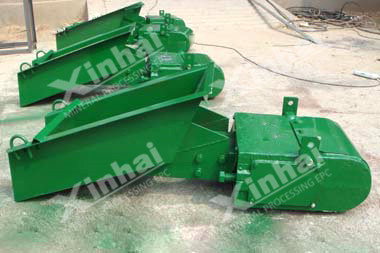

Electromagnetic Vibrating Feeder

Advantages

• Small volume, light weight, simple structure, convenient installation, convenient repair, low operation cost

• Adoption the principle of the mechanical vibration, and less energy consumption.

• Change the volume of flow at any time

• Centralized control and automatic control of production process

• Small wear of feeding tank

• The feeding tank made of alloy-steel plate could convey heat and corrosive materials

Work Principle

The electromagnetic vibrating feeder utilizes electromagnetic vibrating device to drive minerals to reciprocate in the direction of dip. When the vertical component of accelerated speed of feeder exceeds accelerated speed, minerals are tossed upward and leap forward in parabolic fashion. It takes 1/5 second to finish the rising and falling. The chute vibrates for one time and subsequently the minerals are tossed for one time. The chute vibrate at a frequency 3000/minute. Correspondingly, minerals are tossed upward and leap forward. So minerals can continuously and uniformly move forward and feeding is achieved.

Product Structure

Electromagnetic vibrating feeder is composed of Ⅰ、Feeding groove Ⅱ、Speed reducer Ⅲ、Electromagnetic vibratorⅣ、Control cabinet, as chart shown

Product Application

It is widely used in mining, metallurgy, coal, building materials, light industry, chemical industry, electric power, food and other industries. It is used for automatic matching, quantitative package and automatic regulating process. It can feed lump, granular and powdered materials from the storage silo or hopper to devices uniformly or quantitatively.

Technical Parameters

Model	Tank Dimension (LXWXH) (mm)	Feed Size (mm)	Horizontal Feed Amount (t/h)	Feed Amount (t/h)	Power (kW)	Overall Dimension (LXWXH) (mm)	Weight (kg)
GZ1	600X200X100	50	5	7	0.06	910X376X485	80
GZ2	800X300X120		10	14	0.15	1175X608X600	165.5
GZ3	900X400X150	75	25	35	0.2	1325X578X675	223
GZ4	1100X500X200	100	50	70	0.45	1616X762X814	462
GZ5	1200X700X250	150	100	140	0.65	1815X840X980	656
GZ6	1600X900X250	200	150	210	1.5	2410X10925X1500	1252
GZ7	1800X1100X250	250	250	350	3	2800X1330X1710	2017
GZ8	2200X1300X300	300	400	560	4	3302X1556X1995	3153
GZ9	2400X1500X300	350	600	840	5.5	3515X1776X2200	3750
GZ10	2500X1800X375	500	750	1050	4X2	3630X2500X2235	6491
GZ11	2800X2000X375		1000	1400	5.5X2	4060X2640X2919	7680
GZ12	3000X2200X400		1200	1500	15	5260X2860X2563	8840
GZ13	3200X2500X450		1300	1600		6394X3040X2864	9920
GZ14	3500X2500X450	550	1500	1700	18.5	7475X3802X3000	11000
