Efficient Thickener

Advantages

• Adding the flocculants to increased sedimentation particle size, thus speeding up the sedimentation velocity.

• Adding the degassing tank to prevent solid particles attached to the bubbles

• Setting material receiving plate and cylinder moving down, the feeding evenly and steadily falling, effectively prevent the occurrence of the splashing.

• Unit processing capacity is improved by 4 ~ 9 times,and energy saving 30%.

Description

High efficiency thickener is not simple equipment, but with a new type of dewatering equipment mud layer filtration characteristics. Its main feature is to add a certain amount in the flocculants to be concentrated pulp, the pulp of mineral particles form flocks, accelerate the sedimentation rate, and improve the efficiency of the concentrate

Work Principle



This thickener consists of round thickener and harrow scrapping machine, the solid particles suspend in thickener settling by gravity, the pulp in the upper turn into clean water, so that the separation can be realized. Slime that sediment in the bottom of the thickener is discharged by the harrow scrapping continuously, and clean overflow from the upside.

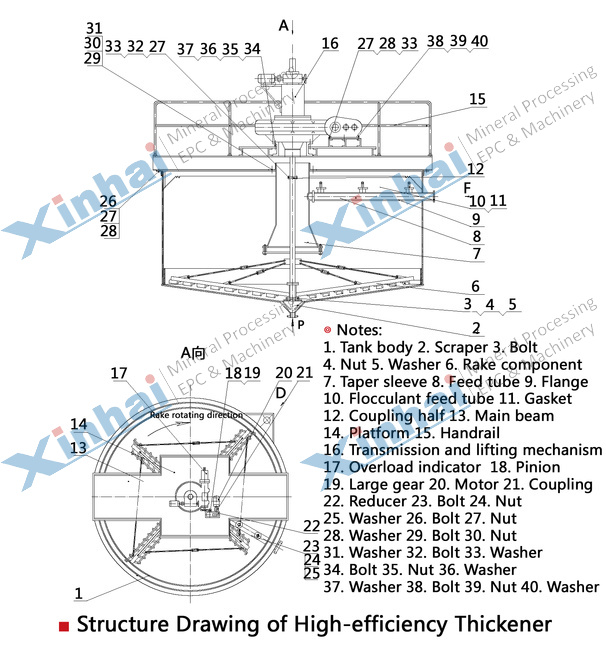

Product structure

Application

Efficient thickener is widely applied in metallurgy, mines, coal, chemical industry, building materials, environmental protection and other departments, which has significance for improvement of water returning utilization rate and underflow conveying concentration.

Technical Parameters

Model	Inner Diameter of Tank (mm)	Tank Height (mm)	Subsidence Area (m2)	Rabble Rotating Speed (r/min)	Lifting Height of the Rabble (mm)	Driving Motor Model	Driving Motor Power (kW)	Lifting Motor Model	Lifting Motor Power (kW)	Steel Tank Weight (kg)	Weight (kg)
GX-3.6	3600	1700	10.2	1.1	200	Y100L-6	1.5	Y100L-6	1.5	2829	6650
GX-5.18	5182	2134	21	0.4	300	Y132S-6	3	PZ0.8AB	0.8	5342	10460
GX-6	6000	2500	28.3	0.8	300	Y132M1-6	4	Y132S-8	2.2	6506	10573
GX-7.5	7500	2800	44.1	0.427	300	Y132M2-6	5.5	Y132S-8	2.2	10258	17320
GX-9	9000	2800	63.6	0.427	300	Y132M2-6	5.5	Y132S-8	2.2	15980	23680
GX-12	12000	3600	110	0.35	300	Y132M-4	7.5	Y100L1-4	2.2	25589	42756
GX-15	15000	4000	177	0.15	300	YCT200-4B	7.5	Y112M-6	2.2	36050	59000
GX-18	18000	4400	254	0.13	400	YCT200-4B	7.5	YTC752A-44	5.5	52485	73296
GX-20	20000	4400	314	0.13	400	YCT200-4B	7.5	YTC752A-44	5.5	59365	76020
