Efficient Improved Thickener

Advantages

• Out overflow weir instead of inner overflow weir increases the sedimentation area and not easy to block

• Oblique feeding instead of horizontal feeding solves the blockage problem

• A tranquil flow device reduces material flow rate, so that the overflow becomes more uniform with lower turbidity.

3D Exploded Video

Every single part and working principles of Efficient Improved Thickener are showed in Xinhai 3D video, which is really convenient for you to see the structure and working principles of those large equipment.

Work Principle

The vertical axis rotates driven by motor, and pulp by feeding device flows into the tank center feed mixing barrel.Solid material in the bottom of the tank by the scraper moves out of center; clarified overflow through the tranquil flow device flows out from the ring external overflow weir.

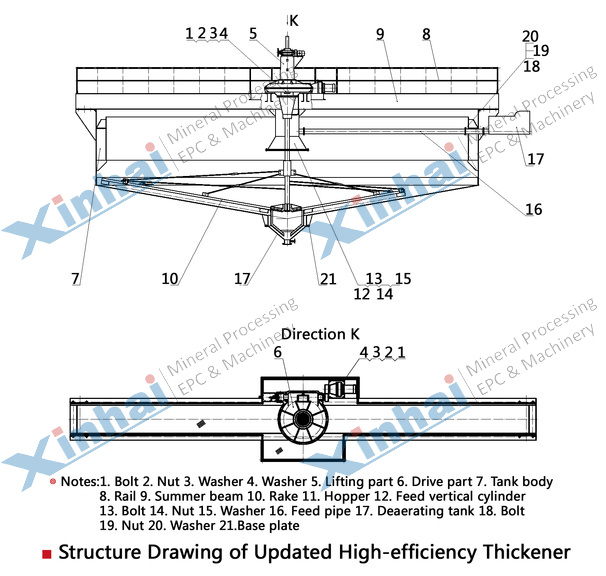

Product Structure

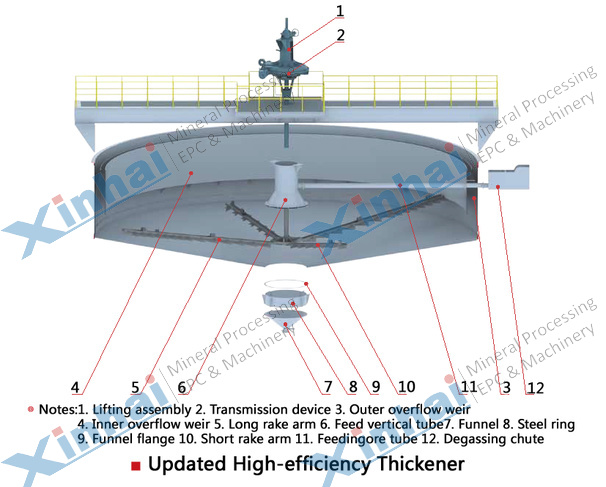

Product Separation

Product Application

It is widely used for dealing with slime, wastewater, waste residue in metallurgy, mine, coal, petrochemical industry, building materials, environmental protection department etc.

Technical Parameters

Model	Tank Diameter (mm)	Tank Depth (mm)	Subsidence Area (m2)	Capacity (t/d)	Motor Model	Motor Power (kW)	Steel Tank Weight (kg)	Weight (kg)
NZSG-2.5	2500	1850	4.9	5 ~22.4	Y90L-6	1.1	1000	2225
NZSG-3A	3000	1800	7	5 ~23.3	Y100L-6	1.5	1664	3168
NZSG-3	3600	1800	10.2	5 ~28.5	Y100L-6	1.5	2097	3680
NZSG-5	5000	2956	16	16 ~90	Y90L-4	1.5	5160	8031
NZSG-6	6000	2956	28.3	98	Y90L-4	1.5	5769	9200
NZSG-7	7000	3000	38.5	140	Y112M-6	2.2	8800	13862
NZSG-8	8000	3318	50.2	185	Y132S-6	3	12966	19158
NZSG-9	9000	3376	63	210	Y132S-6	3	15418	21733
NZSG-12	12000	3600	113	370	Y132S-6	3	25589	34823
NZSG-15	15000	3600	176	580	Y132S-4	5.5	35800	54315
NZSG-18	18000	4400	255	960	YCT200-4B	7.5	52485	73588
NZSG-20	20000	4400	315	1400	YCT200-4B	7.5	59365	76312
