Hydraulic Motor Driving Center Thickener

Advantages

• Simple and convenient installation & maintenance

• The simple internal structure is convenient for the layout of hydraulic and electric control system.

• Control the speed of rake by regulating oil volume of oil pump, so as to achieve the best state.

• Automatic rake lifting and dropping

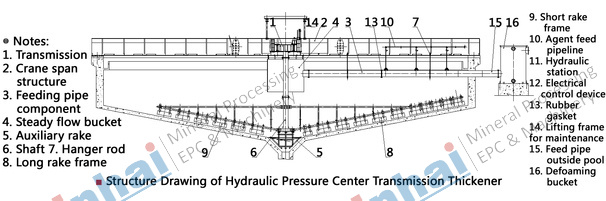

Product Structure

Application

• Mainly used for clarification and concentration of coal slurry or pulp

• Also used for dewatering of solid-liquid separation in chemical industry, metallurgy industry, etc.

Technical Parameters

Technical Parameters Table of Hydraulic Motor Driving Center Thickener

Model	Thickening Tank Diameter (m)	Thickening Tank Center Depth (m)	Subsidence Area (m2)	Time of Harrow Rack Rotation (min)	Height of Lifting Harrow (mm)	Capacity (t/d)	Drive Power (kW)
NZY-6	6	3 ~3.2	28	2.5 ~5	350	50~100	3
NZY-9	9	3.5~3.8	63.6	3~5	350	120~175	3
NZY-12	12	3.5~3.8	113	4~7	350	200~300	4
NZY-15	15	4 ~4.5	176	5~10	450	350~400	5.5
NZY-18	18	4 ~4.5	254	8~12	450	600~800	5.5
NZY-20	20	4 ~4.5	314	8~12	450	800~1000	7.5
NZY-24	24	4.5~5.5	450	9~12	450	1000~1300	7.5
NZY-30	30	4.5~5.5	706	10 ~14	450	1500~1800	11
NZY-38	38	6.5 ~8	1134	15 ~22	600	1800~2200	15
NZY-40	40	6.5 ~8	1256	15 ~22	600	2200~2400	15
NZY-45	45	6.5 ~8	1590	15 ~22	600	2400~2800	15
NZY-53	53	6.5 ~8	2206	15 ~22	600	3000~3500	15
NZY-60	60	7 ~8.5	2827	16~50	600	3500~5000	18.5
NZY-75	75	8~10	4418	20 ~80	800	7500~10000	22
NZY-100	100	8~10	7853	35~80	800	10000~15000	30
