Home > Products > Agitation Equipment>Agitation Tank
Agitation Tank
- Introduction
- A traditional agitation equipment
- Effective Volume
- 0.074～19.1m3
- Product Improvement
- The creator of lining Xinhai wear- resistant rubber on cylinder
Advantages
The cylinder is lined with Xinhai wear-resistant rubber with strong resistance to wear and corrosion
Strong agitation capability
Stable operation, convenient maintenance
Energy saving

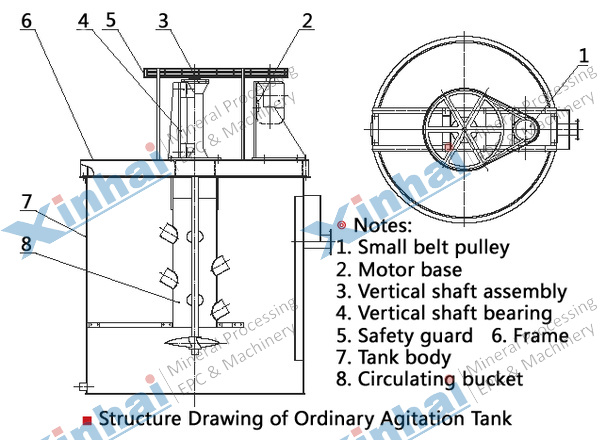

Product structure
Product application
Agitation tank is mainly applied in slurry stirring before floatation, chemical and construction industry, cyanide chemical plant, sewage treatment plant, and coal plant etc.
Technical Parameters
（Better using according to the own situation and guidance of technician）
| Model | Effective Volume (m3) | Rotating Speed of Impeller (r/min) | Diameter of Impeller (mm) | Motor Model | Motor Power (kW) |
Weight (kg) |
| BJ-500X500 | 0.0785 | 493 | 160 | Y80L-4 | 0.55 | 120 |
| BJ-750X750 | 0.25 | 530 | 240 | Y100L-6 | 1.5 | 240 |
| BJ-1000X1000 | 0.58 | 530 | 310 | Y100L-6 | 1.5 | 680 |
| BJ-1500X1500 | 2.2 | 320 | 400 | Y132S-6 | 3 | 790 |
| BJ-1600X1800 | 2.6 | 331 | 400 | Y132M2-6 | 5.5 | 990 |
| BJ-2000X2000 | 4.4 | 230 | 550 | Y132M2-6 | 5.5 | 1800 |
| BJ-2000X2500 | 5.9 | 230 | 630 | Y160M-6 | 7.5 | 2106 |
| BJ-2500X2500 | 11.2 | 230 | 630 | Y160M-6 | 7.5 | 2766 |
| BJ-3000X3000 | 19.1 | 210 | 700 | Y225S-8 | 18.5 | 4613 |
| BJ-3500X3500 | 24 | 230 | 850 | Y225M-8 | 22 | 5980 |
| BJ-4000 X 4000 | 45 | 153 | 1000 | Y250M-8 | 30 | 8910 |
