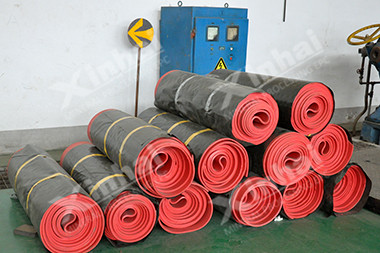

Wear-Resistant Rubber

Wear-Resistant Rubber
Product Introduction
Domestic unique rubber sheet used in wet condition
Working Pressure
Pressure ≤1.0MPa
Product Improvement
Wear – resistant Rubber Sheet adopts the technology (Liquid phase nanometer compounding-normal temperature high frequency curing) by Xinhai independently developed

Product Feature

Wear-resistant rubber

Creative technology reserves the molecular chain of natural rubber. The content of natural rubber reaches 97%; uniform rubber vulcanization, strong comprehensive performance.

Tests show that Xinhai Wear - Resistant Rubber sheet owns excellent performance :
Wear resistance index 128%
Resilience 80%
Tensile strength 23.5MP
Tearing strength 168N/mm

Advantages

Wear-resistant rubber

I Softkill of Xinhai Wear-Resistant Rubber

Xinhai wear-resistant rubber has a large amount of polymer long chains. It has such characters as strong tensile resistance and high resilience, which effectively improves the performance of wear and corrosion resistance. Compared with ordinary rubbers, Xinhai rubber reduces the microstructure damage to the lowest, and maintains the natural features of solid, good elasticity and wear-resistance.

Xinhai Wear – resistant rubber with high elasticity is different from the hard materials such as cast stone, compounding ceramics, alloy, iron, etc. It can effectively absorb and repulse the impact and friction force, which takes the loss to a minimum, the noise to the lowest, showing the characteristics of softkill.

Wear-resistant rubber



II Resistance to wear and corrosion

The wear resistance index of Xinhai Wear – resistant Rubber sheet reaches 128%.  1 mm wear experiment shows that Xinhai Wear – resistant Rubber which takes 100 hours to wear 1 mm wins out over the other kinds of rubber which takes 13.8 hour and 24 hour respectively to wear 1 mm.


III The service life is longer than other rubber by 2-4 times

Because of the excellent performance of Xinhai rubber (Tensile strength, wear and corrosion resistance), its service life is longer than other rubber by 2-4 times

Wear-resistant rubber

IV Flexible and convenient cutting, wide application

Cutting and bonding the wear – resistant rubber to meet various shape and surface requirements, according to the need of piping, pipe fittings, hopper, chute, cylinder, and so on.

Technical Parameters

Rubber types 35 40 50 60 HD62 HD70 HDS N55
Color Red Red Red / Orange Red / Orange Black Black Red Orange
Polymer type Nature Nature Nature Nature Natural / Synthetic Natural / Synthetic Natural / Synthetic NBR(Nitrile rubber)
Items Standard
Hardness GB/T6031-1998 35 39 50 60 62 70 70 55
Tensile strength (MPa) GB/T528-1998 23.5 25 29 28 22 23 22.8 19
Elongation at break % GB/T528-1998 866 750 750 750 700 600 580 740
Tension set % GB/T528-1998 4 6 20 40 12 14 25 12
Tear strength (N/mm) GB/T529-1998 81.34 80 140 168 136 142 100 71
Resilience % GB/T1681-1991 76 74 68 56 50 44 57 34
Specific gravity GB/T533-1991 0.95 0.95 1.06 1.1 1.12 1.14 1.14 1.14
Temperature range   -40 - 70oC -40 - 70oC -40 - 70oC -40 - 75oC -40 - 75oC -40 - 75oC -40 - 75oC -40 - 110oC
Wear resistance index GB/T9867-1988
Wet
>=128% >=90% >=40% >=20% >=40% >=40% >=38% >=16%
