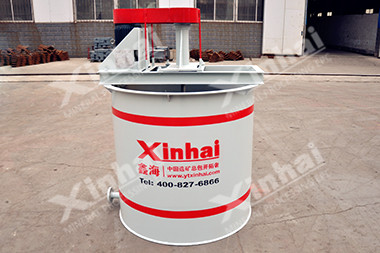

Agitation Tank for Chemical Reagent

Agitation Tank for Chemical Reagent
Introduction
An agitation equipment used in reagents preparation
Effective Volume
0.094~ 4.4m3
Product improvement
The cylinder is lined with Xinhai wear-resitant rubber to resist the corrosion of reagents

Advantages

 Reagent agitation tank

  • Excellent wear-resistance, long service life

  • Strong agitation capability

Work principle

Agitation tank for chemical reagent for chemical reagent adopts barrel shaped radiation circular spiral impeller for mixing operation by mechanical stirring method. The motor drives V- belt transmission device which drives the impeller. Reagents mix evenly under the rotation of impeller preparing for next step that mix the ore slurry and reagents.

Agitation tank for chemical reagent is used for reagents preparation before floatation.

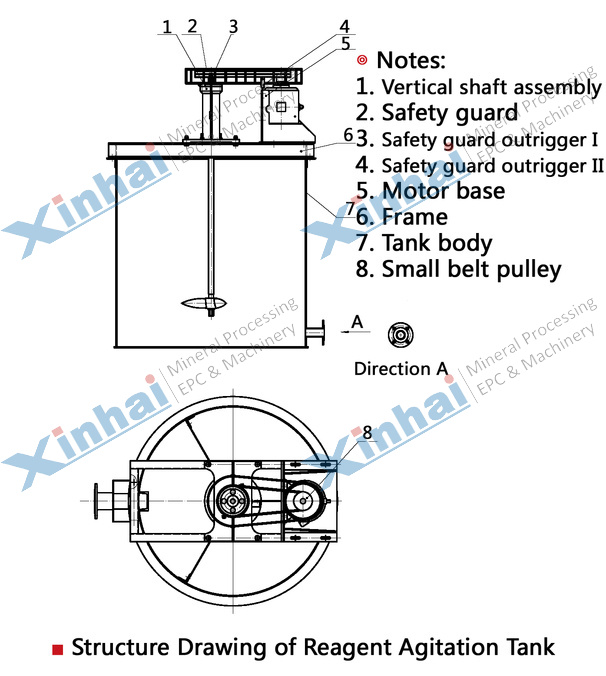

Product structure

 Agitation Tank for Chemical Reagent

Technical Parameters

(Better using according to the own situation and guidance of technician)

​-
Model Effective Volume (m3) Rotating Speed of Impeller (r/min) Diameter of Impeller (mm) Motor Model Motor Power
(kW)
Weight (kg)
BJW-500X600 0.094 493 200 Y80L-4 0.55 120
BJW-750X750 0.25 530 240 Y100L-6 1.5 230
BJW-750X1000 0.35 530 240 Y100L-6 1.5 270
BJW-1000X1000 0.58 530 240 Y100L-6 1.5 420
BJW-1250X1250 1.15 492 310 Y100L1-4 2.2 490
BJW-1500X1500 2.2 320 400 Y132S-6 3 1310
BJW-2000X2000 5.46 230 550 Y132M2-6 5.5 1720
BJW-3000X3000 14.8 210 700 Y225S-8 18.5 4613
