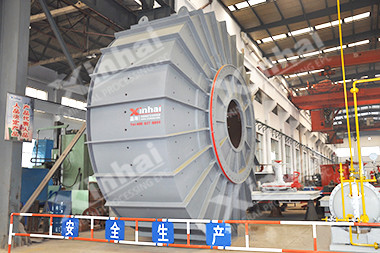

Autogenous Mill
- Product Introduction
- A wet autogenous mill that materials as grinding media
- Feeding Particle Size
- 200-350mm
- Product improvement
- High-efficiency autogenous mill can realize the second and third stage crushing and screening, and part or all crushing and grinding of rod mill or ball mil. Low power consumption, no dust pollution, less auxiliary equipment, easy production automation, and stable particle size.
Advantages
Simplify the crushing and grinding process; feeding particle size is 200-350mm, and after the first autogenous grinding, the product particle size reaches below a few millimeter. It is suitable for ore with high content of mud and water; small area taken, low investment

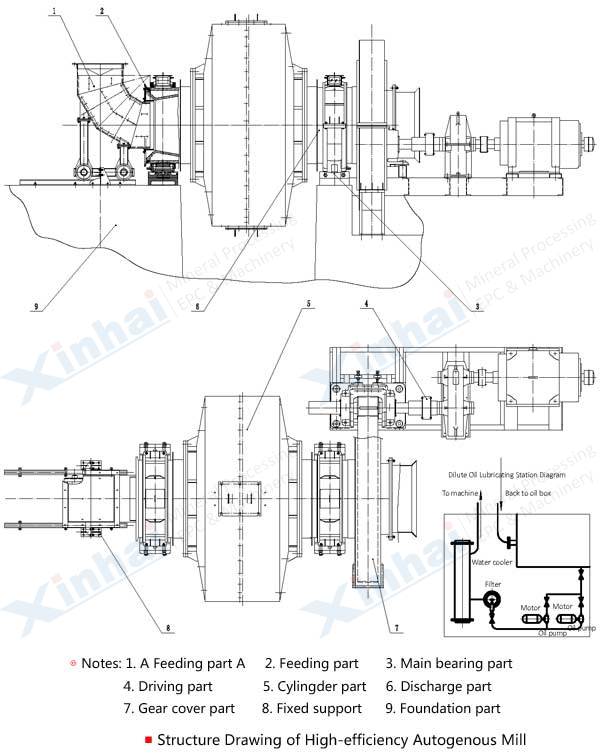

Product Structure
Except for few hard ore, most of metal ores could use wet autogenous mill.
Technical Parameters
| Model | Diameter (mm) | Length (mm) | Feed Size (mm) | Main Motor | |||
| Model | Power (kW) | Voltage (V) | Weight (t) | ||||
| ZMJ4014 | 4000 | 1400 | < 350 | JR148-8 | 245 | 10000 | 75 |
| ZMJ4018 | 4000 | 1800 | < 350 | JR1410-8 | 320 | 10000 | 82 |
| ZMJ5518 | 5500 | 1800 | < 400 | TDMK800-36 | 800 | 10000 | 175 |
| ZMJ6522 | 6500 | 2200 | < 400 | TDMK1600-40 | 1600 | 10000 | 280 |
| ZMJ7525 | 7500 | 2500 | < 400 | TM2500-16 | 2500 | 10000 | 455 |
| ZMJ7528 | 7500 | 2800 | < 400 | TM2500-16 | 2500 | 10000 | 465 |
