Grid Type Ball Mill

Grid Type Ball Mill
Introduction
A traditional ball mill with discharging grid
Diameter of cylinder
900mm～4500mm
Products improvement
Wet type grid ball mill is lined with Xinhai wear-resistant rubber sheet with excellent wear resistance, long service life and convenient maintenance

Advantages

Grid ball mill

  • Jack-up device, easy maintenance

  • The hydrostatic and hydrodynamic bearings ensure the smooth operation

  • Low speed transmission is easy for starting and maintenance

  • The oil-mist lubrication device guarantees reliable performance of bearings

  • The gas clutch adopts the flexible start-up model

Introduction

Wet type grid ball mill produced by Xinhai Company is applied in mineral dressing, chemical industry, and construction industry. More related information of grid ball mill, please contact with Yantai Xinhai

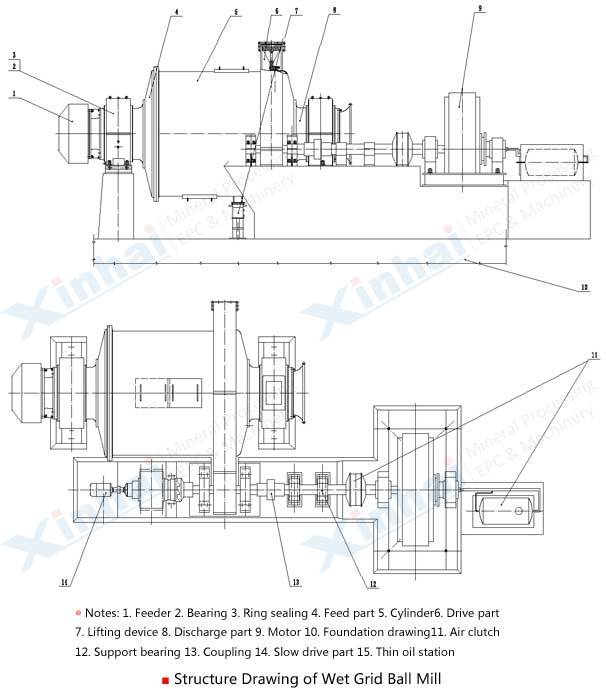

Product Structure

Grid Type Ball Mill

Technical Parameters

Model Cylinder
Diameter
(mm)		 Cylinder
Length
(mm)		 Motor Model Motor
Power
(kW)		 Length
(mm)		 Width
(mm)		 Height
(mm)		 Effective
Volume
(m3)		 Max. Ball Load (t) Weight
(kg)
MQG0909 900 900 Y225S-8 18.5 4750 2213 2050 0.45 0.96 4620
MQG0918 900 1800 Y225M-8 22 5000 2280 2050 0.9 1.92 5340
MQG1212 1200 1200 Y225M-8 22 5788 2994 2540 1.14 2.4 11438
MQG1224 1200 2400 Y315S-8 55 6673 2994 2540 2.28 3.96 13200
MQG1515 1500 1500 JR115-8 60 6094 3300 2766 2.5 5 13700
MQG1530 1500 3000 JR125--8 95 7979 3300 2766 5 10 18690
MQG2122 2100 2200 JR128-8 155 7750 4839 3794 6.6 15 45400
MQG2130 2100 3000 JR137-8 210 8744 4394.7 3110 9 20 45790
MQG2430 2400 3000 JR1410-8 280 9728 4956 4018 12.1 22.5 67000
MQG2721 2700 2100 JR1410-8 280 9300 5500 4500 10.7 24 63000
MQG2727 2700 2700 JR148-8 310 9900 5500 4500 13.8 29 68530
MQG2736 2700 3600 TDMK400-32/2150 400 9765 5826.6 4674.5 18.4 41 98020
MQG3231 3200 3100 TDMK630-36 630 12750 6750 5152.5 22.5 45 115103
MQG3236 3200 3600 TDMK630-36 630 14300 6760 5200 24.8 58 119012
MQG3245 3200 4500 TDMK800-36 800 13896 7200 5152.5 32.8 65 137589
MQG3639 3600 3900 TDMK1000-36/3600 1000 15000 7200 6300 36.2 75 145000
MQG3645 3600 4500 TDMK1250-40 1250 15200 7750 6300 41.8 90 159700
MQG3650 3600 5000 TDMK1400-40 1400 17600 7750 6300 46.4 96 158000
MQG3660 3600 6000 TDMK1600-40 1600 17000 8800 6500 55.7 120 189000
MQG4060 4000 6000 TDMK1700-30 1700 17400 9500 7600 69.8 137 214000
MQG4560 4500 6000 TDMK2300-30 2300 17800 10500 7600 87 158 294000
