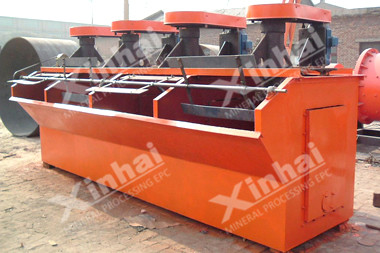

XJB Bar Flotation Cell

Advantages

• Strong agitation force; nice moving trace of slurry; suitable for the selection of coarse ore with bigger gravity and high sedimentation rate

• Uniform mixing of slurry, air and reagents

• Rapid flotation speed

• Easy to restart after stopping

Work Principle

When the flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.

Product Structure

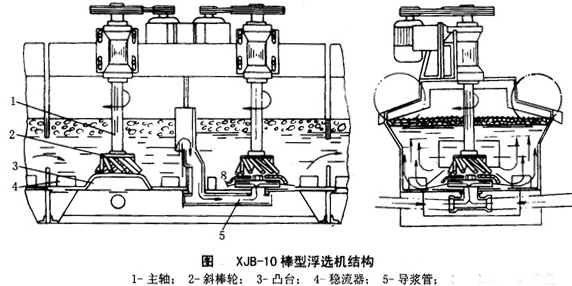

Bar flotation cell has air inflation agitation group consisting of oblique rod wheel, convex plate, arc stabilizer, etc. Impeller is consisted of a disc and 12 bevel cone bars. The rotating speed of bevel cone bar gets faster and faster while downing and agitation force gets stronger accordingly.

Technical Parameters

Model	Tank Type	Effective Volume(m3)	Capacity(m3/min)	Impeller Diameter(mm)	Impeller Rotation Speed(r.p.m)	Motor Power for Agitation（kw)	Motor Power for Scraper（kw))	4 Tank Weight(kg)
XJB-1	Suction Tank	1	1.5-1.7	400	440	5.5	1.5	5344
XJB-1	Direct Flow Cell	1	1.5-1.7	410	410	4	0.8	5344
XJB-1D	Suction Tank	1	1.5-1.7	400	440	5.5	1.5	5479
XJB-1D	Direct Flow Cell	1	1.5-1.7	410	410	4	0.8	5479
XJB-2	Suction Tank	2	1.5-1.4	450	360	15	1.1	9071
XJB-2	Direct Flow Cell	2	1.5-1.4	540	360	11	1.1	9071
XJB-2D	Suction Tank	2	1.5-1.4	450	360	15	1.1	9320
XJB-2D	Direct Flow Cell	2	1.5-1.4	540	360	11	1.1	9320
XJB-4	Suction Tank	4	2.0-4	700	280	18.5	1.1	16325
XJB-4	Direct Flow Cell	4	2.0-4	510	280	18.5	1.1	16325
