Round Vibrating Screen(YA)

Advantages

• Screen mesh is made of wear-resistant rubber with long service life

• Screen frame with high strength

• Large clearance bearings operating with low temperature lift

• Reasonable mechanical structure, low noise and high screening efficiency

• Ring groove rivets connection, advanced structure, strong and durable

• Large capacity, strong versatility of components and convenient repair

Classification of screen mesh

Screen mesh is main wearing parts. According to the materials and requirement of clients, there are manganese steel weaving meshes, punching screens and rubber screen plates with single or double layers.

According to the loading, wear-resistant screen mesh of Xinhai round vibrating screen is divided into light screen mesh (HD60 rubber), medium screen mesh (HD 70 rubber), heavy screen mesh (HDS rubber)

Product Description

Round vibrating screenadopts eccentric shaft vibration exciter and eccentric block to adjust amplitude. The vibrator installed on the sideboard of screen box forces screen box to vibrate by the driving of motor. The sideboard of vibrating screen is made of high quality steel plate. Connect sideboards, beams, and the exciter base by high strength bolts or ring groove rivet. Vibrating screen adopts seat installation, and screen angle can be adjusted by changing the height of spring support.

The motor of round vibrating screen are installed on the right side of screen box, and can also be installed on the left side of screen box. If no special requirements, the motor is installed on the right side.

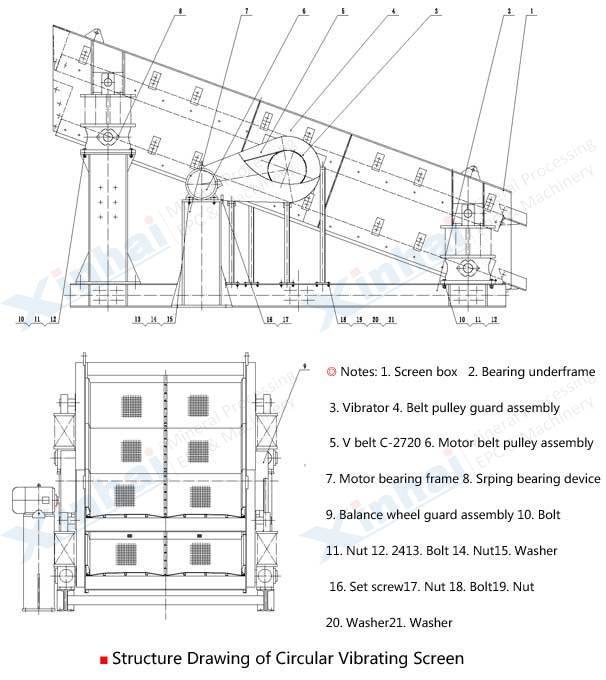

Product Structure

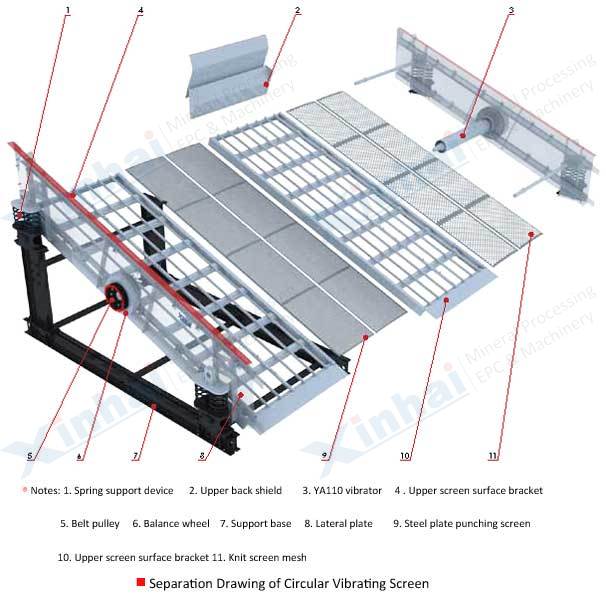

Product Separation

Application

Round vibrating screen is applied in quarry for screening sandstone or for product classification of coal, mine, construction materials, electric power and chemical industry.

Technical Parameters

Model	Screen Surface			Max. Feed Size	Capacity (t/h)	Motor		Weight (kg)
	Area (m2)	Dip Angle (° )	Mesh Size (mm)	(mm)		Model	Power (kW)
YA1236	4.3	20	6~50	200	80~240	Y160M-4	11	4905
2YA1236					80~240	Y160M-4		5311
YA1530	4.5				80~240	Y160M-4		4675
YA1536	5.4				100~350	Y160M-4		5137
2YA1536				400	100~350	Y160L-4	15	5624
YAH1536			30~150		160~650	Y160M-4	11	5621
2YAH1536			30~150; 6~50		160~650	Y160L-4	15	6045
YA1542	6.5		6~50	200	110~385	Y160M-4	11	5515
2YA1542			6~50		110~385	Y160L-4	15	6098
YA1548	7.2		6~50		120~420	Y160L-4		5918
2YA1548			6~50		120~420	Y160L-4		6321
YAH1548	7.2		30~150	400	200~780	Y160L-4		6842
2YAH1548	7.2		30~150 ； 6~50		200~780	Y160L-4		7404
YA1836	6.5		30~150	200	140~220	Y160M-4	11	5205
2YA1836	6.5		30~150		140~220	Y160L-4	15	5946
YAH1836	6.5		30~150	400	220~910	Y160M-4	11	5900
2YAH1836	6.5		30~150; 6~50		220~910	Y160L-4	15	6353
YA1842	7.6		6~150	200	140~490	Y160L-4	15	5829
2YA1842	7.6		6 ~150		140~490	Y160L-4	15	6437
YAH1842	7.6		30~150	400	450~800	Y160L-4	15	6352
2YAH1842	7.6		30~150 ； 6~50		450~800	Y160L-4	15	7037
YA1848	8.6	20	6~50	200	150~525	Y160L-4	15	6289
2YA1848	8.6			200	150~525	Y160L-4	15	6624
YAH1848	8.6		30~150	400	250~1000	Y160L-4	15	7122
2YAH1848	8.6		30~150 ； 6~50	400	250~1000	Y160L-4	15	7740
YA2148	10		6~50	200	180~630	Y180M-4	18.5	9033
2YA2148	10		6~50	200	180~630	Y180L-4	22	10532
YAH2148	10		13~200	400	270~1200	Y180M-4	18.5	10430
2YAH2148	10		30~150 ； 6~50	400	270~1200	Y180L-4	22	11190
YA2160	12.6		6~80	200	230~800	Y180M-4	18.5	9926
2YA2160	12.6		6~50	200	230~800	Y200L-4	22	11249
YAH2160	12.6		30~150	400	350~1500	Y200L-4	30	12490
2YAH2160	12.6		30~150 ； 6~50	400	350~1500	Y200L-4	30	13858
YA2448	11.5		6~50	200	200~700	Y180 M -4	18.5	9834
YAH2448	11.5		6~50	400	310~1300	Y200L-4	30	11830
2YAH2448	11.5		30~150； 6~50	400	310~1300	Y200L-4	30	13012
YA2460	14.4		6~50	200	260~780	Y200L-4	30	12240
2YA2460	14.4		6~50	200	260~780	Y200L-4	30	13583
YAH2460	14.4		30~150	400	400~1700	Y200L-4	30	13096
2YAH2460	14.4		30~150 ； 6~50	400	400~1700	Y200L-4	30	14455
