Jaw Crusher

Advantages

• Advanced swing jaw assembly, more durable

• Large reduction ratio, optimum design of chamber and high crushing efficiency

• New cambered jaw increases the effective length of the jaw plate and brings lager capacity.

3D Video

Every single part and working principles of Jaw crusher are showed in Xinhai 3D video, which is really convenient for you to see the structure and working principles of those large equipment.

Work Principle

The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw, and the stuff will be crushed in multiple ways. The angle of Jaw Crusher between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw of jaw crusher moves away from fixed jaw by the pulling force of rod and spring, the products after crushing will be discharged from the outlet of Jaw crusher.

Product Separation

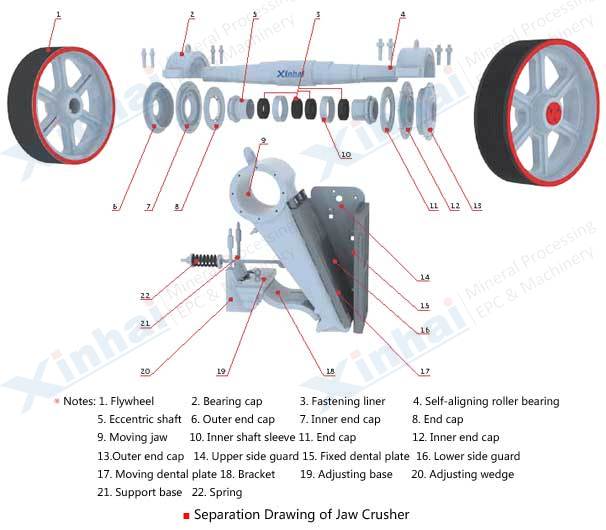

As the above jaw crusher diagram, it is widely used in mining, building materials, chemical industry, metallurgy, highway and railway, water conservancy and so on. Xinhai, as famous jaw crushers manufacturer, will provide suitable jaw crusher price and machine selection for you.

Technical Parameters

Type	Model	Inlet Dimension (mm)	Outlet Dimension (mm)	Max. Feed Size (mm)	Capacity (t/h)	Rotating Speed of Eccentric Wheel (r/min)	Motor Power (kW)	Overall Dimension (mm)	Weight (kg)
Ordinary Crushing	PE100X150	100X150	5~20	80	0.5 ~2	300	2.2	525X535X605	230
	PE150X250	150X250	10 ~40	125	2~6	300	5.5	875X745X935	1100
	PE200X350	200X350	10 ~50	160	6~10	300	7.5	1080X1060X1088	1600
	PE250X400	250X400	20 ~60	210	8~26	300	15	1108X1090X1392	2396
	ZGPE250X400				8~16			1430X1316X1296	2800
	PE250X500	250X500	20 ~80	210	13 ~45	300	18.5	1360X1450X1440	3100
	ZGPE250X500				13 ~21			1425X1420X1417	3300
	PE400X600	400 X600	40~100	350	25 ~64	275	30	1650X1748X1520	5800
	ZGPE400X600				14 ~36			1716X1736X1653	6500
	PE500X750	500X750	50120	400	30 ~80	275	45	1900X1876X1821	9000
	ZGPE500X750					250		1980X2024X1920	12000
	PE600X900	600 X900	75 ~200	480	56~192	250	75	2280X2245X2320	16700
	ZGPE600X900							2280X2245X2320	14500
	ZGPE750X1060	750X1060	80~235	630	108~256	250	90	2450X2472X2795	28000
	ZGPE900X1200	900X1200	95~265	750	186~398	200	110	3335X3182X3025	50000
	ZGPE1100X1400	1100X1400	150~300	950	250~600	193	132	3900X3040X3875	70000
	ZGPE1200X1500	1200X1500	160~320	1000	280~700	190	160	3800X3040X4150	82000
Fine Crushing	PEX150X750	150X750	18 ~48	120	8~25	320	15	1210X1572X1045	2800
	ZGPEX150X750		10 ~40					1240X1586X1025	3500
	PEX200X1000	200 X1000	20~55	160	12 ~50	330	22	1860X1385X1200	5200
	ZGPEX250X750	250X750	20 ~60	210	10 ~45	320	30	1751X1400X1515	4900
	PEX250X1000	250X1000	20 ~50	210	15 ~50	330	30	1550X1990X1370	6500
	ZGPEX250X1000							1650X1958X1460	6800
	ZGPEX250X1200	250X1200	20 ~60	210	20 ~60	320	45	1650X2170X1465	9000
	ZGPEX300X1300	300X1300	25 ~65	250	20 ~80	330	55	1980X2456X1740	11500
