Electromagnetic Iron Remover

Advantages

• Large magnetic penetration depth

• Strong magnetically attractive force

• Resistance todust, rain and corrosion

Product Principle

After power on, strong magnetic force picks up the iron parts mixed in materials, and then the iron parts are thrown out by unloading iron belt. This can effectively prevent the belt from longitudinal laceration, and guarantees the normal working of crushing, grinding machine etc.. It is usually installed in the head or middle of belt conveyor.

Application

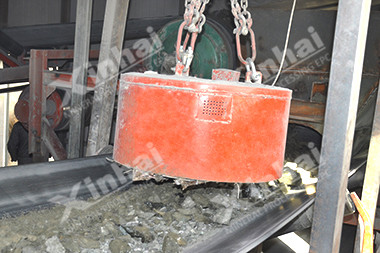

Electromagnetic iron remover adopts the concentric structure which ensures strong magnetic field and less magnetic flux leakage. Assorted with electric wagon, the electromagnetic iron remover is suspended above belt conveyer for continuous operation. The total enclosed structure is suitable for outdoor operation. Due to the large magnetic potential, it is expert in removing iron for belt conveyer which has higher speed and thicker layer. It is widely used in electric power, mining, metallurgy, building materials, coal, chemical industry and other departments

Product Structure

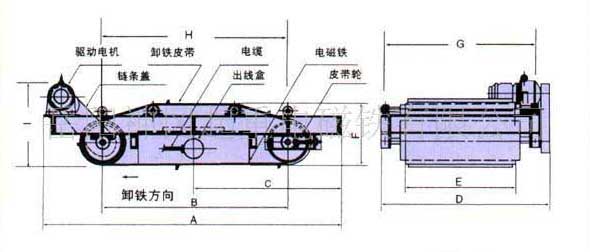

Electromagnetic Iron Remover is composed of the main body and iron removal part.

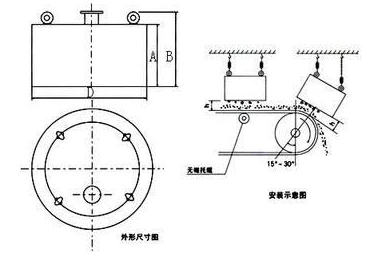

As shown in diagram

Technical Parameters

Model	Cooling Pattern	Belt Width (mm)	Excitation Power (kW)	Hanging Height (mm)	Thickness of Materials (mm)	Belt Speed (m/s)	Weight (kg)
RCDA-5	Forced Air Cooling	500	1	150	≤ 100	≤ 2.5	450
RCDA-6		600	1.6	175	≤ 150		620
RCDA-8		800	2	250	≤ 200		960
RCDB-5	Natural Air Cooling	500	1	150	≤ 110		400
RCDB-6		600	1.6	175	≤ 140		600
RCDB-8		800	3	250	≤ 200		950
RCDC-5	Forced Air Cooling and Automatic Unloading Iron	500	1.2	150	≤ 100		1100
RCDC-6		600	2.0	175	≤ 150		1300
RCDC-8		800	3.5	250	≤ 200		2200
RCDD-5	Natural Air Cooling and Automatic Unloading	500	1	150	≤ 110		1000
RCDD-6		600	1.8	175	≤ 140		1350
RCDD-8		800	3	250	≤ 200		1600
