Home > Products > Transmission Equipment>Belt Conveyor
Belt Conveyor
- Product Introduction
- A general stationary belt conveyor.
- Capacity
- 78-2995 t/h
- Product Improvement
- Equipped backstop device
- Selections of electric drum, electric drum with external motor or electric reducer according to the working condition
Advantages
Rubber or plastic bands with oil resistance, acid and alkali resistance are adopted for materials with special properties.
The head of conveyor belt with vulcanized linkage prolongs the service life greatly.
Stable conveying, no relative movement between materials and conveyer belt
Large capacity, simple structure, convenient maintenance, low operation cost and wide application.
Work Feature

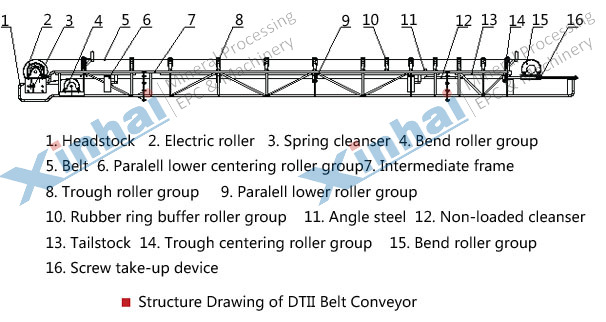

Product Structure
Application
Belt conveyer can be widely used in chemical industry, coal, mine, electrical department, light industry, grain, transportation department etc. It is suitable for conveying various materials in granular or powder.
Technical Parameters
| Belt Width B (mm) | |||||||
| Carrying Idler Type | Belt Speed (m/s) | 500 | 650 | 800 | 1000 | 1200 | 1400 |
| Trough Idler | Conveying Capacity Q (t/h) | ||||||
| 0.8 | 78 | 131 | — | — | — | — | |
| 1.00 | 97 | 164 | 278 | 435 | 655 | 891 | |
| 1.25 | 122 | 206 | 348 | 544 | 819 | 1115 | |
| 1.6 | 156 | 264 | 445 | 696 | 1048 | 1427 | |
| 2.0 | 191 | 323 | 546 | 853 | 1284 | 1748 | |
| 2.5 | 232 | 391 | 661 | 1033 | 1556 | 2118 | |
| 3.15 | 824 | 1233 | 1858 | 2528 | |||
| 4.0 | 2202 | 2995 | |||||
