Belt Conveyor with High Inclination Angle and Waved Guard Side

Advantages

• Large lifting height

• Large conveying angle, small area taken, reduce equipment investment and construction cost

• In vertical layout, full closed setting, good sealing performance, little dust, good environmental protection

It is widely used in coal, building materials, grain, chemical industry, electricity department, underground mining engineering, strip mining, huge automatic ship discharging etc.

Product Description

Belt conveyor with high inclination angle and waved guard side is bonded with rubber waveform vertical “skirt” with free expansion. The skirt is bonded with transverse diaphragms with a certain intensity and elasticity, which makes the material convey in the bucket.

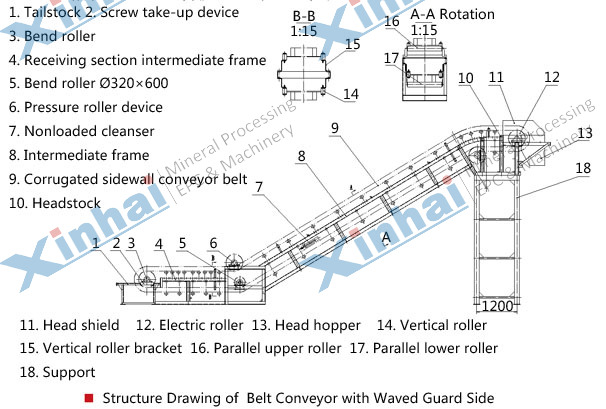

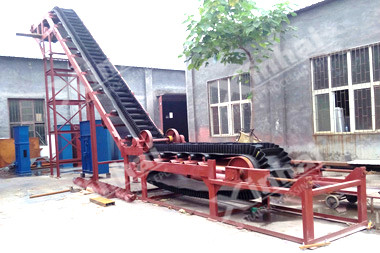

Product Structure

Technical Parameters

Belt Width (mm)		500			650			800			1000
Guard Side Height (mm)		80	120	160	80	120	160	120	160	200	160	200	240
Dip Angle (R)	30。	2.0	2.0	2.0	1.6	2.0	2.0	2.0	2.5	2.5	2.5	2.5	2.5
		100	120	120	100	140	160	140	180	200	180	250	280
	40。	2.0	2.0	2.0	1.6	2.0	2.0	2.0	2.0	2.0	2.0	2.0	2.5
		100	120	120	100	140	160	140	180	200	180	250	280
	50。	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	2.0
		80	120	140	80	120	140	120	140	180	140	180	220
	60。	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6
		80	120	140	80	120	140	120	140	180	140	180	220
	70。	1.25	1.25	1.25	1.25	1.25	1.25	1.6	1.6	1.6	1.6	1.6	1.6
		50	60	100	50	60	100	120	100	140	100	140	180
	90。	1.0	1.0	1.0	1.25	1.25	1.25	1.25	1.25	1.25	1.25	1.25	1.25
		50	60	80	50	60	80	60	80	100	80	100	140
Belt Width (mm)		1200				1400				1600
Guard Side Height (mm)		160	200	240	300	200	240	300	400	200	240	300	400
Dip Angle (R)	30。	2.5	3.15	3.15	3.15	3.15	3.15	3.15	3.15	3.15	3.15	3.15	3.15
		160	250	280	310	250	280	350	350	250	280	350	350
	40。	2.5	2.5	3.15	3.15	2.5	3.15	3.15	3.15	2.5	3.15	3.15	3.15
		200	250	280	310	250	280	350	350	250	280	350	350
	50。	1.6	2.0	2.5	2.5	2.0	2.5	2.5	2.5	2.0	2.5	2.5	2.5
		140	180	220	280	180	220	280	320	180	220	280	320
	60。	1.6	1.6	1.6	2.0	1.6	1.6	2.0	2.0	1.6	1.6	2.0	2.0
		140	180	220	280	180	220	280	320	180	220	280	320
	70。	1.6	1.6	1.6	2.0	1.6	1.6	2.0	2.0	1.6	1.6	2.0	2.0
		100	140	180	200	140	180	200	250	140	180	200	250
	90。	1.25	1.25	1.25	1.25	1.25	1.25	1.25	1.25	1.25	1.25	1.25	1.25
		80	100	140	160	100	140	160	200	100	140	160	200
