Jig

Advantages

• Stroke and jig frequency are easy to adjust; the advanced frequency conversion speed control technology is convenient to operate and manage

• Small cover area, high processing capacity per unit area

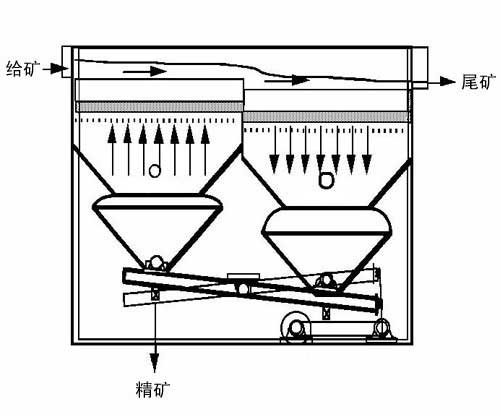

Work Principle

Sawtooth wave jig is revised and manufactured, based on the stratified theory and the adequate analysis of other conventional jigs. The jigging pulsation curve----produced by sawtooth wave jig----is in the shape of sawtooth wave which makes upward water flow quicker than downward water flow. The feature that upward time is shorter than downward time solves the problem that time and action of upward/downward water flows. This breakthrough dramatically amplifies the loose degree and mitigates suction action, which facilitates precipitation of coarse ores and improves ore recovery rate.

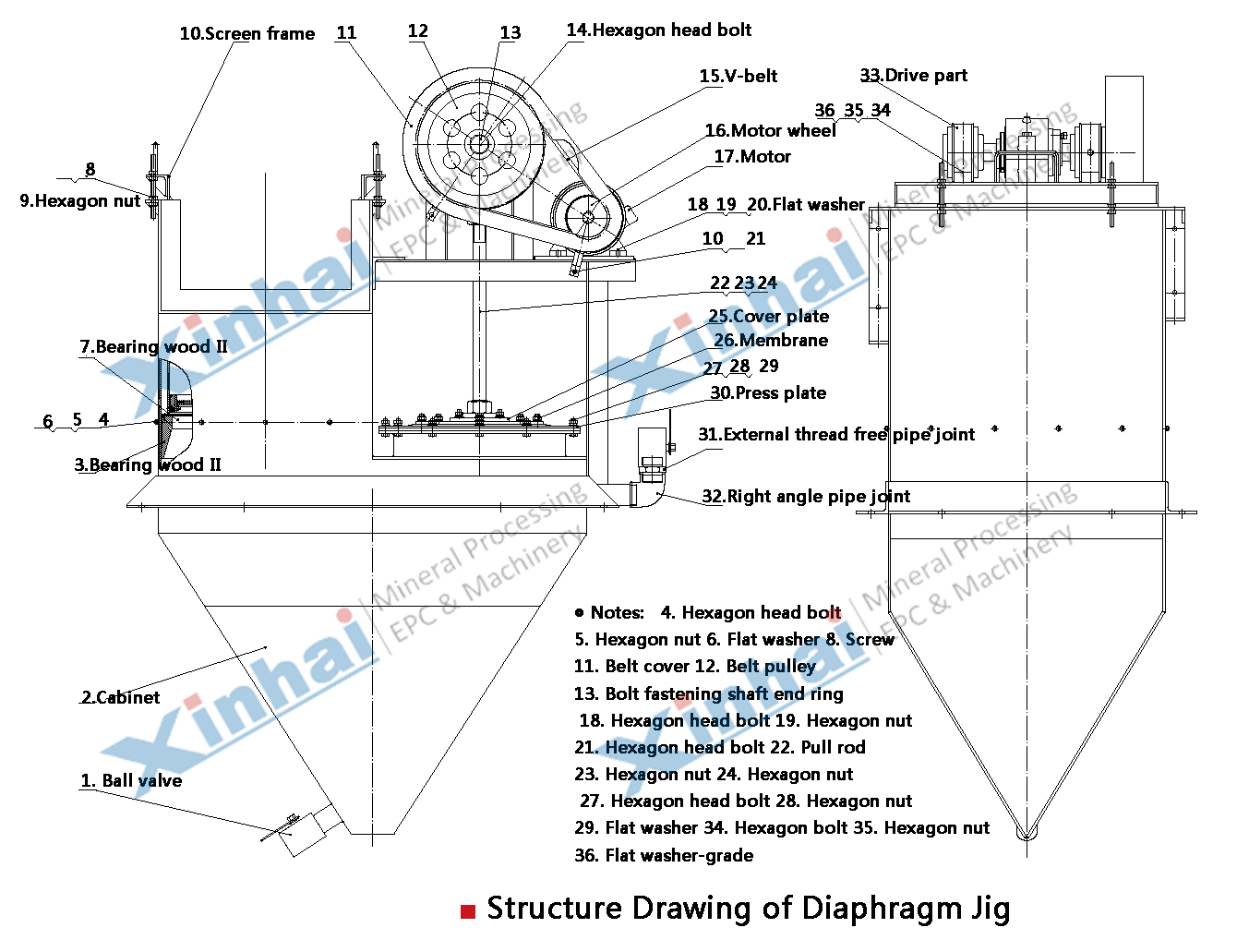

Product Structure

Jig is screen fixed type mainly used to handle placer gold, tungsten, tin, hematite and beach placer.The maximum feeding particle size is 6~8mm.

Technical Parameters

Item & Parameters & Model	Jigging Chamber		Diaphragm		Feed Size (mm)	Adding Water Yield Under Screen (m3/t)	Water Pressure (MPa)	Handling Capacity (t/h)	Motor Power (kW)	Dimension (mm)	Weight (kg)
	Shape	Area (m2)	Stroke (mm)	Jig Frequency (time/min)
JT-0.57	Trapezoid	0.57	8.5 ~12 10 ~17 12 ~21	80~180	<6	1~2	≥ 0.05	1.5 ~3	1.5	1550X780X1530	610
JT1-1	Trapezoid	1.04			<10	2~3		2.5 ~5	2.2	2270X1110X1890	900
JT2-2	Rectangle	2.28			<10	2~4		5~10	3	3225X1550X2050	1640
JT3-1	Trapezoid	3	12 ~30	50~125	<10	3~6	≥ 0.05	7.5 ~15	5.5	2745X2000X3030	3085
JT4-2	Rectangle	4	25 ~57		<25	4~8		8~20	7.5	4240X1990X2750	3098
JT4-2A	Rectangle	4	25 ~57		<25	4~8		8~20	4X2	4240X1990X2750	3500
JT5-2	Trapezoid	4.86	12 ~30		<10	3~6		12 ~25	7.5	3600X2000X2600	4500
