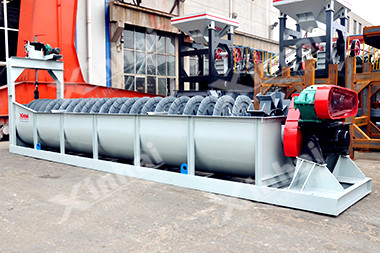

High Dam Spiral Classifier

Product Application

The overflow spiral blade is higher than overflow level, and the overflow spiral center is lower than overflow surface. The high wire spiral classifier is applied in the classification of ore with particle size 0.83-0.15mm

Working Principle

The grinded pulp is fed into tank from the inlet in the middle of settlement region, and the slurry classification sedimentation area is under the inclined tank. The spiral with low speed rotation stirs the slurry, so that the fine particles rise, and the coarse particles sinks to the bottom of tank. Overflow dam is above the bearing center which is under screw shaft, and is underneath overflow end.

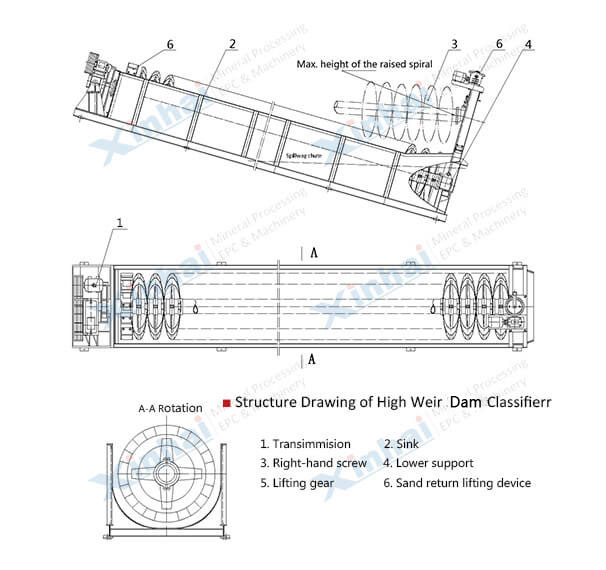

Product Structure

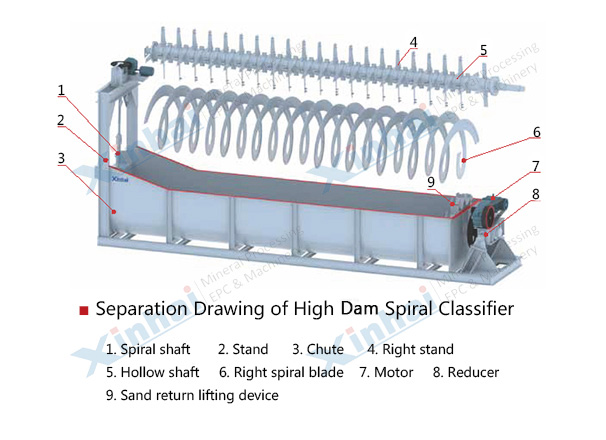

Separation Drawing

High dam spiral classifier as the ancillary equipment of grinding to pre-classifying and check classifying is also applied in de-mudding and dewatering.

Technical Parameters

Please contact us if you want to choose the most suitable high dam spiral classifier, and our experts will give you advice

Type	Model	Rotating Speed of Spiral (r/min)	Capacity of Sand Return (t/d)	Capacity of Overflow (t/d)	Spiral Diameter (mm)	Spiral Length (mm)	Slope of Water Tank	Drive Motor Model	Drive Motor Power (kW)	Lifting Motor Model	Lifting Motor Power (kW)	Weight (kg)
High Dam Single Spiral Classifier	FLG-300	7.7	30 ~80	10-30	Φ300	3900	14 ~18	Y100L1-4	2.2	Manualdriven	—	668
	FLG-500	8	145~260	21-32	Φ500	4390		Y112M-6				1600
	FLG-750	7.8	256~654	31-65	Φ750	5500		Y132S-6	3			2716
	FLG-1000	6.7	473~1026	85	Φ1000	6556		Y132M2-6	5.5			4000
	FLG-1200	5,6,7	1145~1600	150	Φ1200	6500		Y132M2-6	5.5	Y90L-4	1.5	7943
	FLG-1500	2.5,4,6	1140~2740	235	Φ1500	8265		Y160M-6	7.5	Y100L1-4	2.2	11827
	FLG-2000	3.6,5.5	3890~5940	400	Φ2000	8700		Y160L-6/4	11; 15	Y100L2-4	3	20814
	FLG-2400	3.6	6800	580	Φ2400	9130		Y200L2-6	22	Y112M-4	4	24194
	FLG-3000	3.2	11625	890	Φ3000	12500		Y200L-4	30	Y112M-4	4	42188
High Dam Double Spirals Classifier	2FLG-1200	5,6,7	2340~3200	310	Φ1200	6500		Y132M2-6	5.5X2	Y90L1-4	1.5X2	15840
	2FLG-1500	2.5,4,6	2280~5480	470	Φ1500	8230		Y160M-6	7.5X2	Y100L1-4	2.2X2	22903
	2FLG-2000	3.6,5.5	7780~11880	800	Φ2000	8400		Y160L-4	15X2	Y100L2-4	3.0X2	34621
	2FLG-2400	3.63	13600	1160	Φ2400	9130		Y200L2-6	22X2	Y112M-4	4X2	42460
	2FLG-3000	3.2	23300	1785	Φ3000	12500		Y200L-4	30X2	Y112M-4	4.0X2	73030
