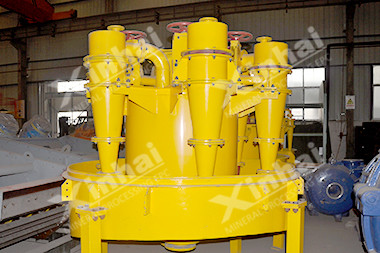

Cyclone Unit

Cyclone Unit
Product Introduction
A cyclone unit with high efficiency
Capacity
Capacity≤2500m3/h
Product Improvement
Each feeding inlet of Xinhai cyclone unit is installed knife gate valve independently developed by Xinhai. This valve with small dimension reduces the diameter of cyclone unit

Advantages

Cyclone unit

  • Cyclone lined with wear – resistant rubber, prolong the service life

  • Stable operation and high separation efficiency

Product Features

Cyclone

unit

Xinhai cyclone unit can be equipped with automatic control system to set parameters for black metal, non-ferrous metals, coal, industrial minerals, non-metallic minerals and building materials. It also checks and adjusts the liquid level of pump tank, slurry flow, outlet pressure, slurry concentration, and motor rotation speed to ensure the indexes are within optimal range.


Cyclone

unit


Xinhai hydrocyclone unit adopts computer to select model. As long as the users fill in the relevant parameters, the program will choose the most suitable cyclone number to make the operation more efficient and meet the requirement of classification.

In addition, Xinhai cyclone unit is combined with other equipment to form classification group, which can improve the machine processing capacity by more than 15%, and multi function screen in combination equipment can automatically return coarse particles in overflow to the mill.

Technical Parameters

Specific gravity correction parameter
Specific gravity Coefficient
1.5 1.86
2.0 1.315
2.5 1.07
2.65 1.02
3.0 0.93
3.5 0.83
4.0 0.76
4.5 0.70
5.0 0.66
6.0 0.59
7.0 0.54
The specific gravity of solids is not 2.73, for example: iron ore accounted for 4.5 multiplies D100 values shown on selection chart by 0.70
